EMC

  • Line Impedance Stabilization Networks (LISNs)

    We are manufacturing a complete range of line impedance stabilization networks for EMC measurements 1, 2 or 4 lines. All 2 and 4 lines LISNs can be remote controlled with all common receivers. LISNs are used for the measurement of line guided and asymmetric interferences. Our LISNs are all designed according the  requirements of EN and CISPR.

All our LISNs fulfill the new CISPR 16-1-2 Amendment 1 and the final draft, Amendment 2, published in CISPR/A/654/FDIS, regarding phase and mains attenuation requirements. Rolf Heine Hochfrequenztechnik is one of the earliest manufactorer whos LISNs are in full compliance with all new CISPR 16 recommendations!

Remoteable with all well known receivers on the market!

Advantages

  • traceable calibration  acc. CISPR 16-1 included
  • switchable attenuator and limiter for many models
  • high attenuation of powerline interferences
  • for two- and fourline measurements
  • attenuated measurement coils
  • remote controllable by all common receivers
  • 2 years warranty





NNB-2/16Z

2-line V-LISN, 2 x 16 A

NNB-4/32T

4-line V-LISN, 4 x 32 A

NNB-4/63TL

4-line V-LISN, 4 x 63 A

NNB-4/200X

4-line V-LISN, 4 x 200 A

NNB-4/350A

4-line V-LISN, 4 x 350 A

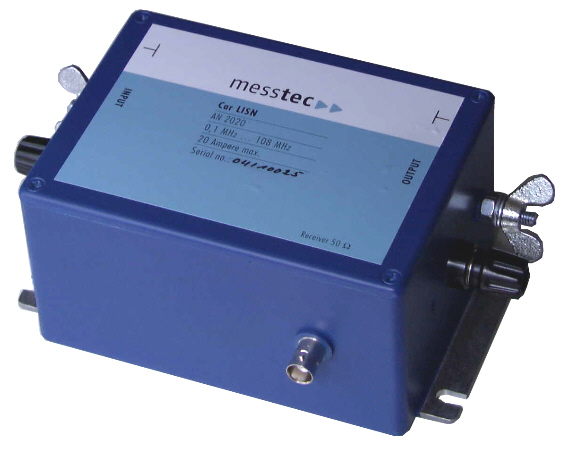

LN-KFZ/20

Car board network LISN, 20 A

LN-DO160/45

Single line LISN, 45 A
10 kHz to 400 MHz (airborne equipment)

LN-KFZ/200

Car board network LISN, 200 A
New: 200 MHz option available!



LN-DO160/200

Single line LISN, 200 A
10 kHz  to 400 MHz (airborne equipment)
